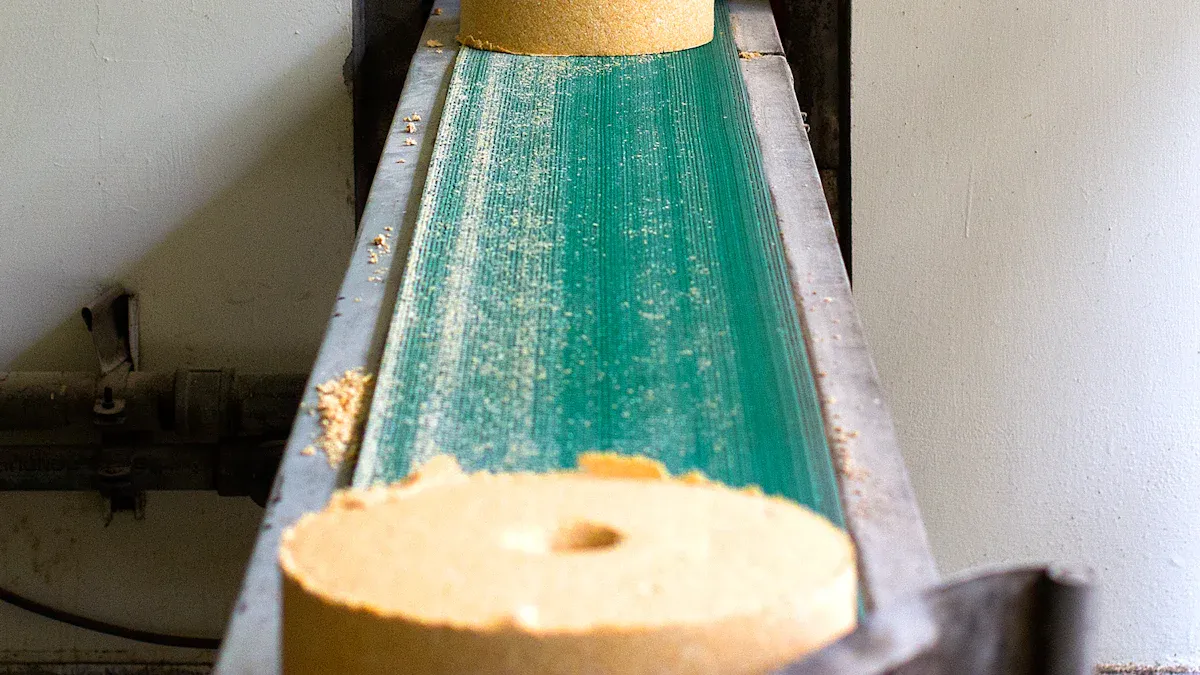

Transmission Belt Overview
Definition and Function
A transmission belt is a flexible loop that connects two or more rotating shafts. It transfers mechanical energy from one shaft to another using friction. This belt plays a key role in many machines by enabling smooth transmission of motion and force.
How Transmission Belts Work
The transmission belt wraps around pulleys attached to shafts. When one pulley turns, the belt moves and causes the other pulley to rotate. This process allows the power transmission belt to transfer energy efficiently between different parts of a machine.
Types of Transmission Belts
Transmission belts come in several forms. The major types of power transmission belt include flat belts, V-belts, and round belts. Flat belts work well for light loads and long distances. V-belts offer better grip and handle higher loads, making them popular in v-belt vs Timing Belt comparisons. Round belts suit small machines and light-duty tasks.
| Type | Shape | Common Use |
|---|---|---|
| Flat Belt | Flat | Conveyors, fans |
| V-Belt | V-shaped | Pumps, compressors |
| Round Belt | Round | Small appliances |
Each type supports different transmission needs based on load, speed, and distance.
Timing Belt Overview
Definition and Function
A Timing Belt is a type of power transmission belt that features teeth molded onto its inner surface. These teeth fit into matching grooves on pulleys, creating a positive engagement. This design allows the Timing Belt to transfer motion and power without slipping.
The Timing Belt ensures that shafts rotate in perfect timing. This feature makes it ideal for applications where precise movement is critical. Many machines rely on Timing Belts to keep parts moving in exact coordination.

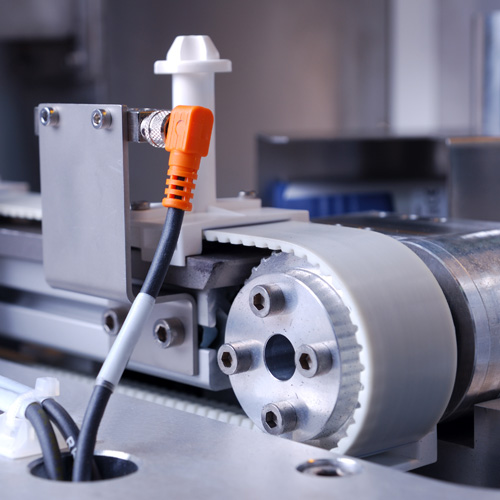

How Timing Belts Work
The Timing Belt operates by meshing its teeth with the grooves on a synchronous pulley. When the pulley turns, the belt’s teeth lock into place, moving the belt forward. This action prevents slippage and keeps the system synchronized.
Timing Belts maintain a constant speed ratio between shafts. This property helps machines achieve accurate timing and repeatable motion. The synchronous system reduces the risk of misalignment and mechanical errors.
Types of Timing Belts
Timing belts can be classified based on their material, each offering distinct properties and applications:
Rubber Timing Belt
- Material: Neoprene or Nitrile Rubber
- Characteristics: Flexible, low noise, cost-effective
Polyurethane Timing Belt
- Material: Polyurethane with embedded steel or aramid fibers
- Characteristics: Wear-resistant, oil-resistant, chemical-resistant, long lifespan
Silicone Timing Belt
- Material: Silicone rubber, often fiber-reinforced
- Characteristics: High and low temperature resistant, soft, chemically resistant
Major Benefits of Using Belts
Transmission Belt Pros
A transmission belt offers a simple way to transfer power between shafts. Many industries choose this belt for its low cost and easy installation. The belt can handle misalignment between shafts.
Pros:
- Handles moderate loads and speeds.
- Reduces noise in many machines.
- Allows for flexible shaft placement.
| Advantage | Description |
|---|---|
| Cost-effective | Lower initial investment |
| Easy replacement | Quick to install and remove |
| Versatile | Works in many transmission setups |
Timing Belt Pros
A Timing Belt uses teeth to prevent slippage and maintain precise timing. Many engineers select this belt for applications that need exact movement.
Pros:
- Delivers accurate power transmission.
- Maintains synchronization between shafts.
- Reduces the risk of mechanical errors.
| Advantage | Description |
|---|---|
| High precision | Keeps timing accurate |
| No slippage | Teeth lock into pulley grooves |
| Low maintenance | Less frequent adjustments required |
Transmission Belt vs Timing Belt
Design and Construction
A transmission belt uses a smooth or grooved surface to grip pulleys through friction. This design allows the belt to flex and fit different pulley sizes. A timing belt, also called a Timing Belt, features teeth that mesh with grooves on the pulley.
The teeth on a timing belt prevent slippage and keep the system in sync. This construction supports precise movement and accurate timing. Both belts use strong materials, but the timing belt often includes reinforced fibers for extra strength.
| Feature | Transmission Belt | Timing Belt (Synchronous) |
|---|---|---|
| Surface | Smooth or grooved | Toothed |
| Engagement | Friction | Positive (teeth and grooves) |
| Flexibility | High | Moderate |
| Material Reinforcement | Sometimes | Often (fiberglass, steel) |
Power Transmission and Precision
A transmission belt relies on friction to transfer power between shafts. This method works well for many machines but can allow some slippage. Slippage may reduce efficiency and affect belt performance.
A timing belt uses its teeth to lock into the pulley grooves. This positive engagement ensures no slippage and keeps shafts moving in perfect timing. The timing belt provides accurate power transmission and supports a highly efficient system.
A power transmission belt must match the needs of the machine. For high torque and low rpm requirements, a timing belt often delivers better results. In a v-belt vs Timing Belt comparison, the Timing Belt offers more precision.
Durability and Maintenance
A transmission belt can wear out faster if exposed to dust, oil, or high temperatures. It may need regular tension adjustments to maintain optimal performance. Maintenance includes checking for cracks, stretching, and misalignment.
A timing belt usually lasts longer because its teeth reduce wear from slippage. It requires less frequent adjustments but needs careful installation to avoid misalignment. Both belts benefit from routine inspections to ensure reliable transmission.
Cost Factors
A transmission belt costs less to purchase and install. It suits applications where budget is a concern and precision is not critical. Replacement parts are widely available and easy to fit.
A timing belt costs more due to its complex design and reinforced materials. The higher price reflects its ability to deliver precise timing and handle demanding tasks. The investment pays off in applications that require accuracy and a highly efficient system.
Typical Applications
Where Transmission Belts Are Used
Transmission belts appear in many industries because they offer flexibility and cost savings. Factories use them in conveyor systems to move products along assembly lines. HVAC systems rely on transmission belts to drive fans and blowers.
Transmission belts are widely used in agricultural equipment, such as threshers and harvesters, to ensure smooth and efficient operation. They are also essential in industrial machinery, including conveyors, packaging machines, printing presses, and textile equipment, providing reliable power transmission and consistent performance across various mechanical systems.
Where Timing Belts Are Used
Timing Belts serve in applications that demand accuracy and timing. They are used to control the precise movement of mechanical components. Packaging machines rely on Timing Belts to ensure products move in perfect sequence.
Printers and copiers use these belts for precise paper handling. Robotics systems depend on Timing Belts for accurate positioning of arms and tools. Food processing equipment often uses Timing Belts to keep operations synchronized and reduce contamination risks.
Common uses for Timing Belts:
- Engine timing systems
- Automated packaging lines
- Robotics and automation
- Printing and imaging devices
- Choosing the Right Belt for Your Application
Conclusion
Choosing the right belt is essential for efficient and reliable machinery operation. By understanding Transmission Belt vs Timing Belt, engineers and operators can select the most suitable option—whether prioritizing flexibility, cost-effectiveness, or precise timing. Proper belt selection minimizes maintenance, prevents mechanical failures, and ensures optimal performance. Making informed choices reinforces both safety and longevity in industrial and mechanical applications.
