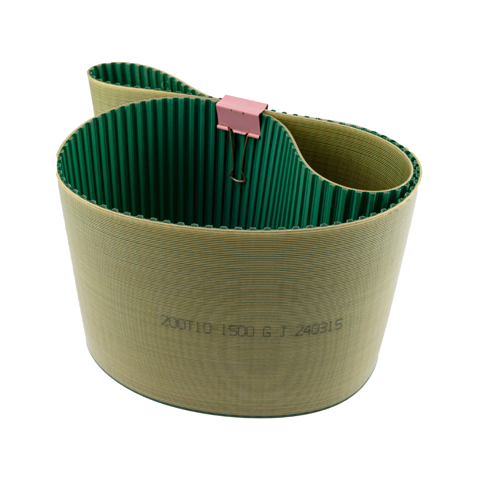

T10 Timing Belt
T10 PU timing belt is a type of toothed belt made from polyurethane. Its pitch is 10mm and suitable for where larger loads or higher torque transmission is required .
- Excellent Load Capacity: The high load-bearing capacity, making it suitable for applications requiring heavy-duty performance.
- Precise Transmission: With T10 specifications, this belt ensures accurate transmission of power, maintaining consistent speed and motion in machinery and equipment.
- Minimal Stretching:T10 PU synchronous belt has minimal elongation, providing reliable performance and maintaining precise timing over extended periods of use.
- Abrasion Resistance: T10 belt is highly resistant to abrasion and wear, ensuring longevity and reliability even in demanding operating conditions.
T10 Timing Belt Description
| Model | T10 |
| Material | Polyurethane |
| Pitch | 10mm |
| Color | White/Transparent/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 36.35mm |
Get Free Quote of T10 Belt
T10 Timing Belt – Engineered for performance, built to last!
