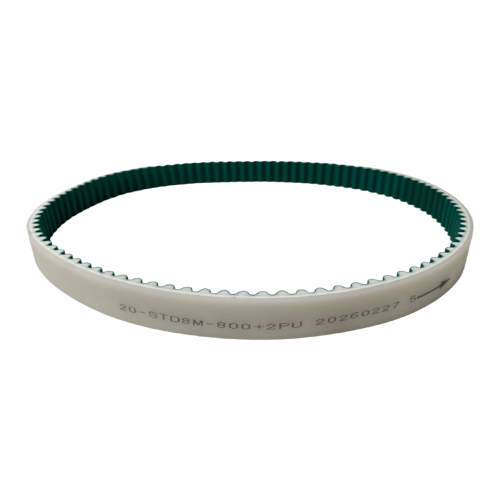

S8M Timing Belt
S8M timing belt is designed for medium to high load capacity applications, providing strong tooth engagement and long service life under continuous working operation.
- Higher torque capacity
- Suitable for long-duty application
- Stable performance in industrial environments
Products Categories
Get A Free Quote
S8M Timing Belt Description
| Model | STD8M |
| Material | Polyurethane |
| Pitch | 8mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 22.28mm |
Get Free Quote of S8M Timing Belt
Request a free quote to get high-load transmission solutions designed for heavy-duty applications.
Our S8M timing belts offer stronger torque capacity, precise tooth engagement, and long service life. Submit the inquiry form now for custom specifications, fast response, and direct factory support.
