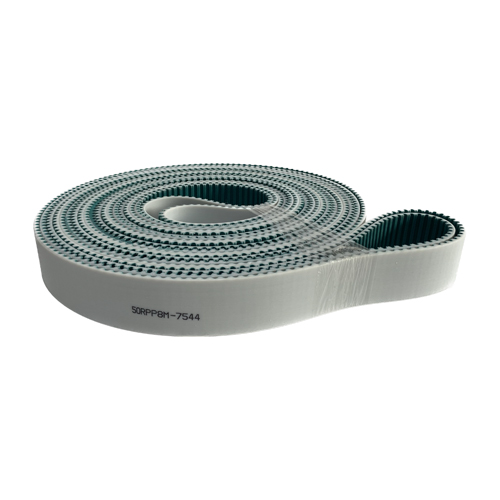

RPP8M Timing Belt
RPP8M PU timing belt has a pitch of 8mm, famous for its special tooth shape design which improves the belt flexibility. It is available in wire and Kevlar core, NFT and NFB.
- Reduced Noise: RPP8M is usually in teeth green cloth(NFT), which reduce the meshing between the belt and the pulley, achieving the effect of reduced noise.
- Anti-fatigue

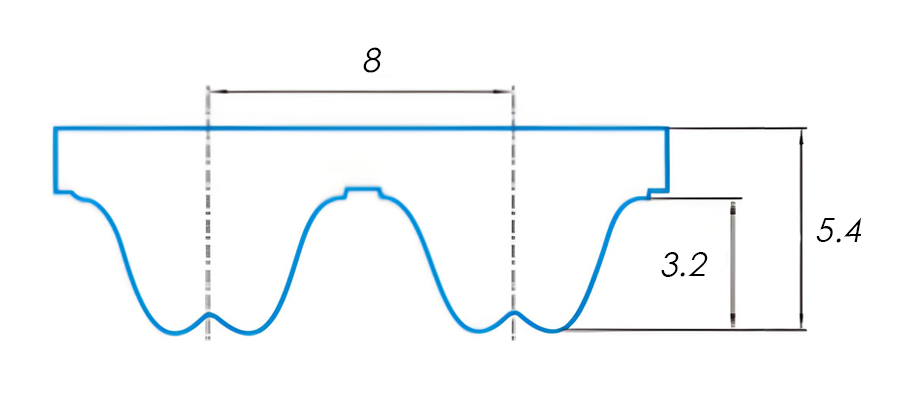

- Good Turing Effect: The belt tooth shape like rabbit teeth, this design improves the belt flexibility and turning effect by spreading the force to teeth two peaks.
Products Categories
Get A Free Quote
RPP8M Timing Belt Description
| Model | RPP8M |
| Material | Polyurethane |
| Pitch | 8mm |
| Color | White |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Application | High Speed Transmission |
Get free quote of RPP8M PU Timing Belt
Precision meets performance –Discover the power of RPP8M PU timing belts.
