RPP14M Timing Belt
The RPP14M timing belt is a high-power, parabolic-tooth synchronous belt with a 14 mm pitch. It is designed for heavy-duty applications, offering superior load-carrying capacity and longer lifespan.
- Excellent Torque Bearing Capacity: Due to the teeth deep and thick structure, RPP14M can transmit torque up to thousands of N per Meter.
- Long Life and Fatigue Resistance: The RPP design effectively relieves the force concentration of the tooth root, and is suitable for high torque and high cycle reliability transmission.
- Excellent resistance to abrasion, oil and chemical.
Products Categories
Get A Free Quote
RPP14M Timing Belt Description
| Model | RPP14M |
| Material | Polyurethane |

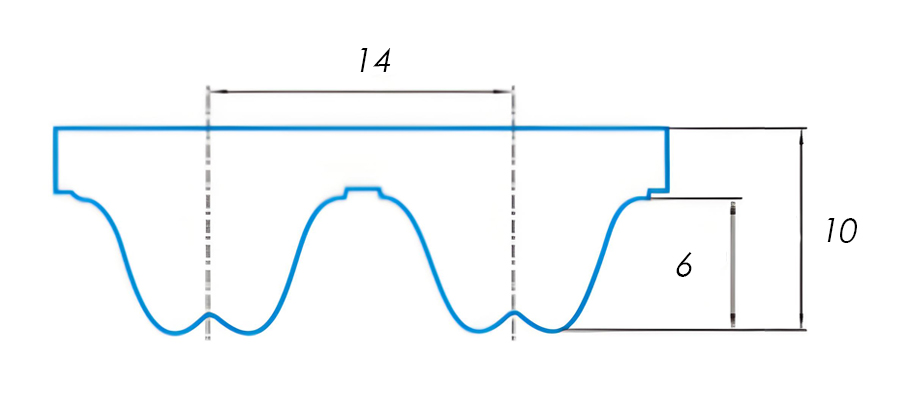

| Pitch | 14mm |
| Color | White |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±1mm |
| Thickness Tolerance | ±0.4mm |
| Minimum Pulley Diameter | 140mm |
Get Free Quote of RPP14M Timing Belt
Strength meets endurance – Discover the reliability of RPP14M PU timing belts.
