Poly-V Serpentine Belt – PH、PJ、PK、PL、PM
Poly-V belt(also called multi-rib belt, serpentine belt or ribbed V-belt), a flexible and continuous belt with multiple triangular-shaped ribs on its inner surface. It is designed to drive multiple engine accessories with less space, auto-tensioning and better grip. It mainly includes H,J,K,L and M types.
- High-flexibility-Extreme flexible, operates quietly and smoothly
- Super efficiency-Transmit high power transmission efficiency (about 95%-98%) with less energy loss
- Compactness-Compatible with small pulley diameter
Poly-V Belt Description
Poly-V belt is a type of cord-reinforced drive belt with multiple longitudinal V- shaped ribs running along its length, which combines the flexibility of flat belt with positive drive characteristics of V-belt. This design supplies protection for all reinforced cords, ensuring even load distribution. Poly-V belt drive multiple accessories in vehicles or machinery by fitting into grooved pulleys.

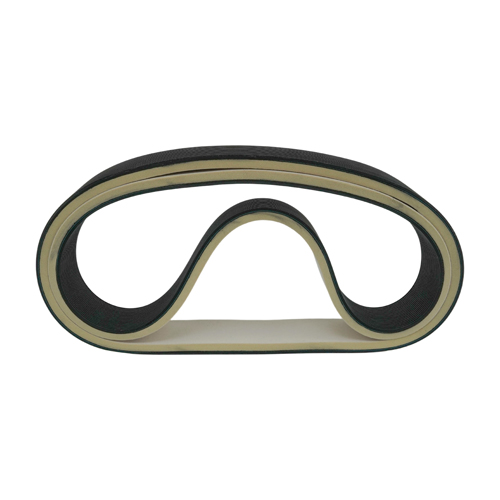

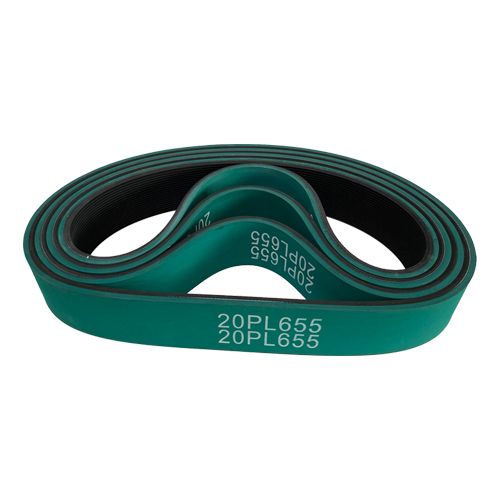

Poly-V belt is composed of three parts: The backing layer is made from durable rubber for flexibility and structural stability; the tensile cord is embedded under the backing layer, made from polyester or Kevlar for tensile strength; the V-shaped longitudinal ribs made of durable rubber compound, offering grip and torque transmission through friction with pulley grooves. Puteken offers various Poly-V belts and Poly-V bet with different coatings, like rubber and sponge, or silicone used for pulling belt.
Serpentine Belt Data Sheet
| Type | Rib Pitch（mm） | Thickness (mm) | Minimum pulley diameter(mm) | Number of ribs |
|---|---|---|---|---|
| PH | 1.6 | 2.5 | 13 | 2~325 |

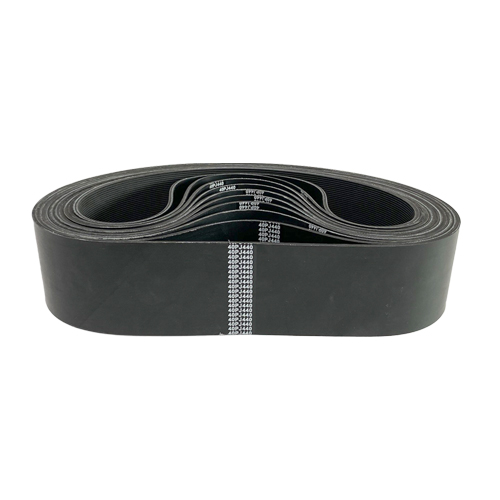

| PJ | 2.34 | 3.8 | 20 | 2~325 |
| PK | 3.56 | 4.5 | 45 | 2~150 |
| PL | 4.7 | 7.6 | 75 | 2~110 |
| PM | 9.4 | 13.3 | 180 | 2~52 |
Applications of Poly-V Belt
- Automotive: Serpentine belts for alternators, power steering and AC compressors.
- Home Appliances: Vacuum cleaners, dryers and washing machines.
- Agricultural Equipment: Harvesters, feed mixer and small tractors.
Get Free Quote of Serpentine Belt
Looking for a reliable Poly-V belt supplier who understands industrial performance requirements?
We provide custom Poly-V belts engineered for high efficiency, stable transmission and long service life—helping you reduce downtime and operating costs.
