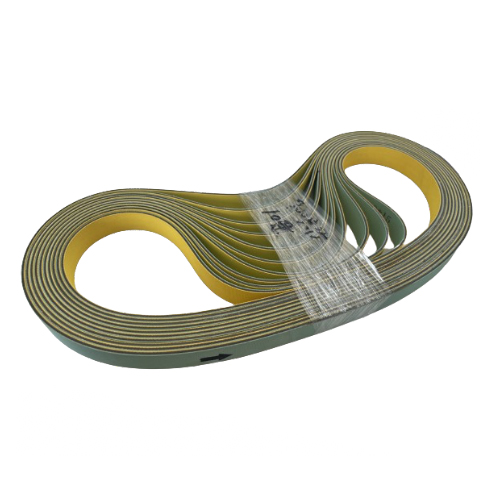

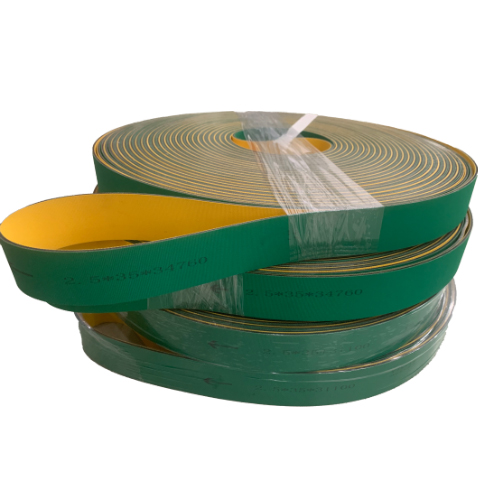

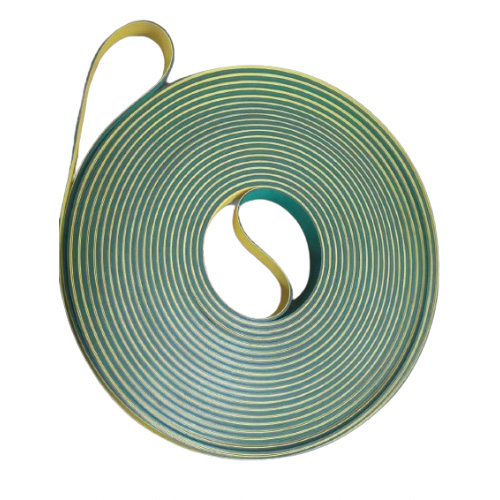

Green/yellow Nylon Flat Belt for Textile Industry

Nylon flat belt is made from multiple layers of nylon fabric combined with other materials such as NBR rubber or leather. It is used in textile, wood and printing industry for power transmission and conveying. Puteken offers various rubber nylon flat belt, such as green/yellow flat belt, high aniti-static blue/gray tangential belt, elastic belt and so on.

High Tensile Strength: Nylon flat belt has high tensile strength, capable of handling heavy loads without stretching or breaking.
Elasticity
Heat Resistance: Nylon flat belt can resist high temperatures.
Moisture Resistance: Polyamide belt is resistant to moisture, making them suitable for environments with high humidity.

Products Categories

Power Transmission Belt

PU Timing Belt

Seamless Belt

High Temperature Rope & Sleeving

Get A Free Quote

Nylon Flat Belt Description

Nylon flat belt is a type of industrial belt used for power transmission and conveyor systems. It is made from durable rubber material with nylon core, it is known for their strength, flexibility and resistance to wear and abrasion. Nylon belt has a certain level of elasticity, which helps in absorbing shock and reducing vibrations during operation.

Nylon sandwich belt is commonly applied in spinning machine, packing industry, paper industry etc.

As a major flat belt producer, Puteken manufacture various types of flat belt and diverse color of flat belt with top quality.

4mm Green/yellow Flat Belt Data Sheet

Brand	Puteken
Place of Origin	Shanghai, China (Mainland)
External Side	NBR/fine structure/green
Transaction Layer Material	Polyamide
Pulley Side	NBR/fine structure/yellow
Thickness (mm)	4 mm
Mass of Belt (belt weight) (kg/㎡)	4.03
Minimum Pulley Diameter(mm)	150
Tensile Force at 1% Elongation per Unit of Width (N/mm)	15.9
Coefficient of Friction (running side / stainless steel slider bed)	0.8
Working Temperature (℃)	-20℃ – 80 ℃
Joint Method	Skived joint
Seamess Maximum Width (mm)	500
