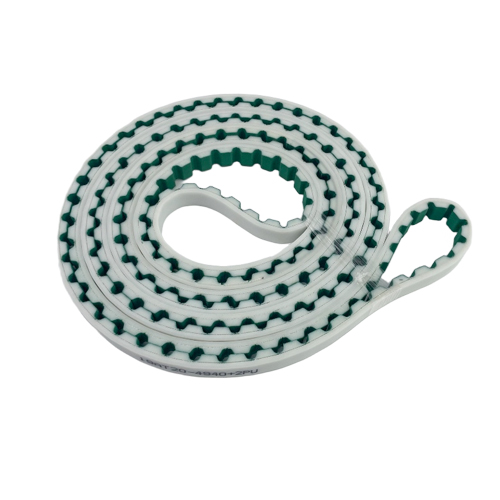

AT20 Timing Belt
AT20 PU timing belt is a type of synchronous belt made from polyurethane. The belt is arched tooth profile with pitch 20mm.
- High Load Capacity: The reinforced construction allows for high load capacities and longer operational life.
- Reduced Slippage: The toothed design ensures no slippage between the belt and the pulley, maintaining accurate timing.
- Low Maintenance: These belts require less maintenance compared to other types of belts like V-belts or flat belts.
- Quiet Operation: They typically operate more quietly than chains or gears.
AT20 Timing Belt Description
| Model | AT20 |
| Material | Polyurethane |
| Pitch | 20mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 111.75mm |
Get Free Quote of AT20 Timing Belt
Precision and Performance—AT20 PU Timing Belt for Ultimate Power Transmission!
